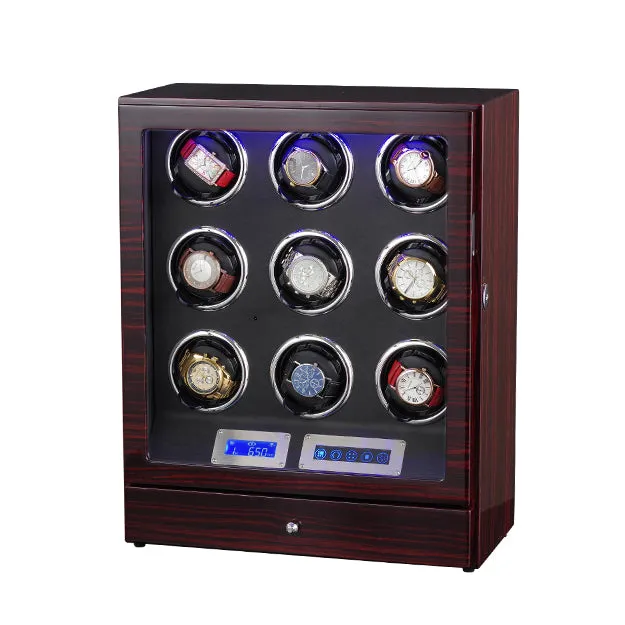

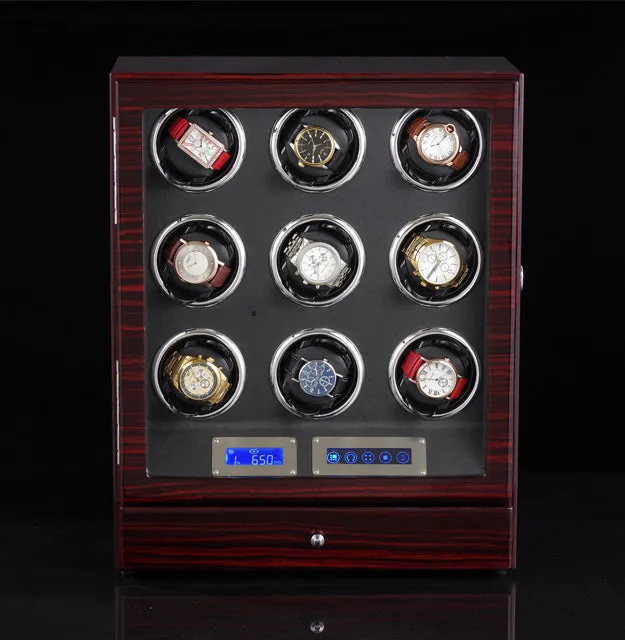

Product model	Y0900C

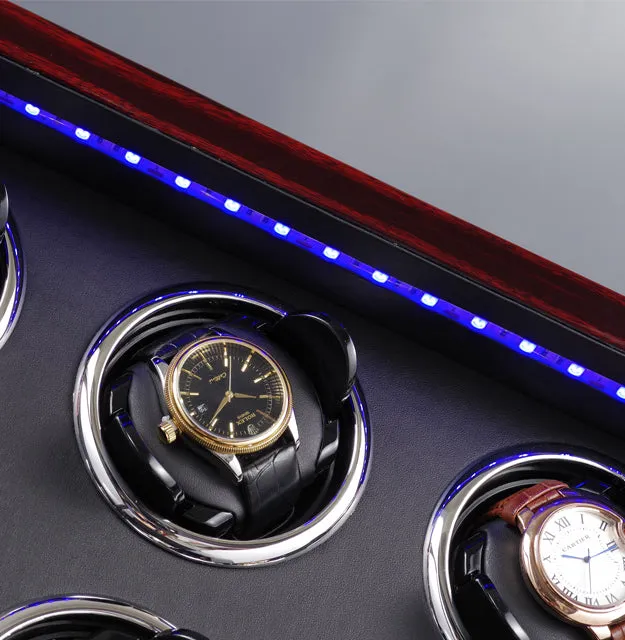

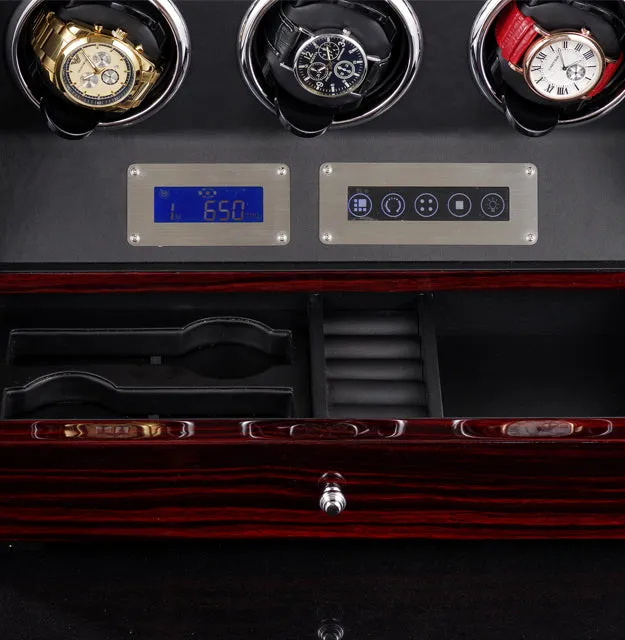

Product features	OPEN-STOP ,Touch screen control Remote control Energy saving LED lights
Product size	470*390*210mm
Packing size	600*500*330mm
net weight	10.2KG
Gross weight	12.6KG
Watch the number	Can fit 9 watches
Material outside	MDF piano painting
Material inside	High quality PU leather
product function	Anti-magnet, anti-dust, anti-stop
Accessory	Switching AC power adapter remote controller user manual cleaning cloth
power supply	AC
optional	Can use Euro USA/UK/Aus types socket, adapter can be CE/UL/AS/NZS 3112 certified



Operation Instruction:

If watch already ceased to move or the watch is going to stop running,please manually winding the watch or wear the watch on your wrist for more than 2 hours first until the watch restart to move.Then you can use the machine as below steps:     1.Load your watch on the pillow,then fix it on the rotator;     2.Plug in the adapter and turn on the power;     3.Select suitable programs mode by program Knob Switch,5 modes are available.



Program Mode

Operating Mode: Work for 12 Hours, Rest for 12 Hours 650TPD, Rotates for 1min, rest for 571s, then repeats this cycle. The direction of rotation can be chosen by users themselves. 750TPD, Rotates for 1min, rest for 487s, then repeats this cycle. The direction of rotation can be chosen by users themselves. 850TPD, Rotates for 1min, rest for 423s, then repeats this cycle. The direction of rotation can be chosen by users themselves. 1000TPD, Rotates for 1min, rest for 423s, then repeats this cycle. The direction of rotation can be chosen by users themselves. 1950TPD, Rotates for 1min, rest for 423s, then repeats this cycle. The direction of rotation can be chosen by users themselves.



Press " I  "is on	when open door/lid,all the motors will stop working and trays stop. When the door/Lid is closed all the motors work and all the trays will start revolving.
Press " O  "is off.
